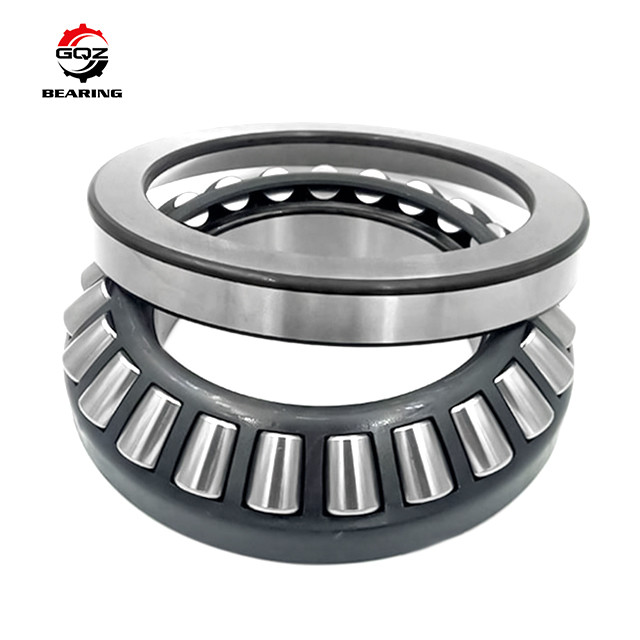

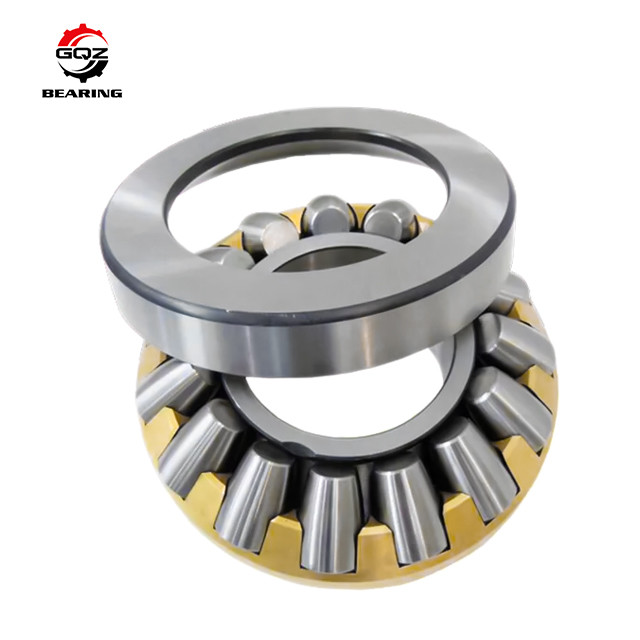

29412 Thrust Spherical Roller Bearings 29412-E1 Single Direction 60x130x42mm
Model łożyska | 29412-E1 29412-E |
Materiał | Pozostałe |
Rodzaj | Thrust Spherical Roller Bearing |
d (mm) | 60 |
D (mm) | 130 |
B (mm) | 42 |
Masa (kg) | 2.50 |
Dokładność |
P0, P6, P5, P4, P2 |
Obecnie mamy265.pcs of 29412-E1 Single Row Thrust Spherical Roller BearingW StockJeśli potrzebujesz29412-E1 29412-E łożyska,po prostu skontaktuj się z nami. Możemy zapewnić Ci najlepszą jakość, najbardziej konkurencyjne ceny, najkrótszy czas dostawy i najwyższej jakości usług.
Więcej szczegółów29412-E1 29412-E, please feel free to contact me by E, please feel free to contact me by Proszę skontaktować się ze mną przez WhatsApplub SkypelubWiadomość elektroniczna.
Poza tym, mamy również różnego rodzaju inne łożyska i bloky przewodnicze w magazynie, po prostu kliknij "Skontaktuj się teraz"knopka dla cen i innych informacji.
łożyska Model |
d (mm) |
D (mm) |
B (mm) |
29412-E1 | 60 | 130 | 42 |
29413-E1 | 65 | 140 | 45 |
29414-E1 | 70 | 150 | 48 |
29415-E1 | 75 | 160 | 51 |
29416-E1 | 80 | 170 | 54 |
29417-E1 | 85 | 180 | 58 |
29418-E1 | 90 | 190 | 60 |
29420-E1 | 100 | 210 | 67 |
29422-E1 | 110 | 230 | 73 |
29424-E1 | 120 | 250 | 78 |
29426-E1 | 130 | 270 | 85 |
29428-E1 | 140 | 280 | 85 |
29430-E1 | 150 | 300 | 90 |
29432-E1 | 160 | 320 | 95 |
29434-E1 | 170 | 340 | 103 |
29436-E1 | 180 | 360 | 109 |
29438-E1 | 190 | 380 | 115 |
29440-E1 | 200 | 400 | 122 |
29444-E1 | 220 | 420 | 122 |
29448-E1 | 240 | 440 | 122 |
łożyska Model |
d (mm) |
D (mm) |
B (mm) |
29392-E-MB | 460 | 710 | 150 |
29396-E-MB | 480 | 730 | 150 |
293/500-E-MB | 500 | 750 | 150 |
293/530-E-MB | 530 | 800 | 160 |
293/560-E-MB | 560 | 850 | 175 |
293/600-E-MB | 600 | 900 | 180 |
293/630-E-MB | 630 | 950 | 190 |
293/670-E-MB | 670 | 1000 | 200 |
293/750-E-MB | 750 | 1120 | 224 |
293/800-E-MB | 800 | 1180 | 230 |
293/850-E-MB | 850 | 1250 | 243 |
293/900-E-MB | 900 | 1320 | 250 |
293/950-E-MB | 850 | 1250 | 243 |
293/1000-E-MB | 1000 | 1460 | 276 |
293/1250-E-MB | 1250 | 1800 | 330 |
293/1600-E-MB | 1600 | 2280 | 408 |
Cechy
Axial spherical roller bearings are single row, self-aligning roller bearings. They comprise solid shaft and housing locating washers and asymmetrical barrel rollers with cages. Axial spherical roller bearings are single row, self-aligning roller bearings.The cage holds together the roller and cage assembly and the shaft locating washer - klatka trzyma razem rolkę i klatkę oraz wał lokalizujący pralkęW rezultacie, komponenty łożyska mogą być zamontowane oddzielnie.
Temperatura pracy
Axial spherical roller bearings can be used at operating temperatures from 30 °C to +200 °C, restricted by the lubricant.
Klatki
Następne | Opis |
E, E1 | Zwiększone możliwości projektowania |
MB |
Solid Brass Cage |
The other bearings have sheet steel cages and do not have a cage suffix. The other bearings have sheet steel cages and do not have a cage suffix.
